Obscure Object of Desire: The Walther MPK Submachine Gun

Walther MPK submachine gun

Courtesy Joe Grine

In the summer of 1972 I was five years old. I don’t remember much from that time but I have a fairly good memory of the TV news reports of the Munich Olympic Village massacre, where the Palestinian group Black September murdered 11 Israeli Olympic athletes.

One thing that didn’t go unnoticed: the unique Walther MP series submachine guns used by first responder German Polizei units. They looked so sinister. It would take more than four decades for me to finally actually fire one, an opportunity provided by Battlefield Vegas.

Walther MPK submachine gun

The 9mm parabellum MPK (Courtesy Joe Grine)

The post-World War II cold war era saw a renaissance in submachine designs, including the UZI, the MAT-49s and Beretta Model 12.

Walther saw the need for a for a more lightweight design which would be both controllable and reliable. The fruit of their labor — the Walther MP series of SMGs — entered production in 1963.

A few years later, competitor Heckler & Koch would perfect the SMG via its roller-lock design, producing the iconic HK MP5.

Despite getting to market first, the Walther MP submachine gun would always play second fiddle to the MP5. Although Walther secured a fair number of contracts from West German police departments and a few military forces here and there around the world, the MP’s were a disappointment commercially. Nonetheless, it remained in production for roughly twenty years.

Interestingly, United States special forces purchased a small number of MP series SMGs in the late 1960s and 1970s, including 1st SFOD-D and Navy SEALs. The photo below purportedly shows a SFOD-D operator using a Walther MP on the ill-fated Iranian hostage rescue mission:

Pic 3

Courtesy US Army

The Walther MP is a select-fire, open-bolt, blowback-operated submachine gun that fires the 9x19mm cartridge. Rounds are fed via a 32-round box magazine that appears to be based on the Carl Gustaf “Swedish K” stick magazines.

On full auto, the cyclic rate of fire is approximately 550 rounds per minute, making the weapon highly controllable. The Walther MP features a stamped steel upper and lower receiver. It’s typically found with a skeleton wire folding stock cloaked in a rubberized covering.

Walther produced two variants of the MP: the Walther MPL (Maschinenpistole Lang shown above) and the MPK (Maschinenpistole Kurz shown below). The primary difference between the two is the barrel length.

The MPL features a 10.2″ Barrel and the MPK sported a 6.8″ barrel. With the stock extended, the MPL is 29.5″ long (75cm), and the MPK measures 26″ (66cm) long.  The MPK was also 1/3 pound lighter than the MPL.

Walther MPK submachine gun

Courtesy Joe Grine

The Walther MP SMGs are interesting from a design standpoint for a number of reasons. First, it features an L-shaped bolt which rides partially above the barrel. This design reduces the length of the receiver, as shown in the photos below.

Walther MPK submachine gun

Courtesy Joe Grine



Walther MPK submachine gun

Courtesy Joe Grine

Second, the MP doesn’t have a firing “pin” per se, but rather features a nipple-like protrusion on the bolt face.

Walther MPK submachine gun

Courtesy Joe Grine

The Walther MP’s dual-purpose iron sights also deserve attention. It’s a long-range aperture sight. A “notch” style CQB sight is etched into the top. With this combination the shooter can take more precise shots at longer distances and use the notches on top for instinctive or point shooting at closer ranges.

My shooting experience with the Walther MPK was very pleasant and all too brief. The weapon can be easily be fired in 2-3 round bursts. Hits were easy to obtain.

My only real complaint: the three-position ambi selector switch isn’t nearly as easy to manipulate as an HK MP-5’s. Interestingly, the selector goes from safe (S) to full auto (D) and then finally to semi-Auto (E).

Walther MPK submachine gun

Left side of MPK receiver (Courtesy Joe Grine)

The two photos below show the barrel shroud, chamber, and the non-reciprocating bolt handle:

Walther MPK submachine gun

Courtesy Joe Grine

Walther MPK submachine gun

Courtesy Joe Grine

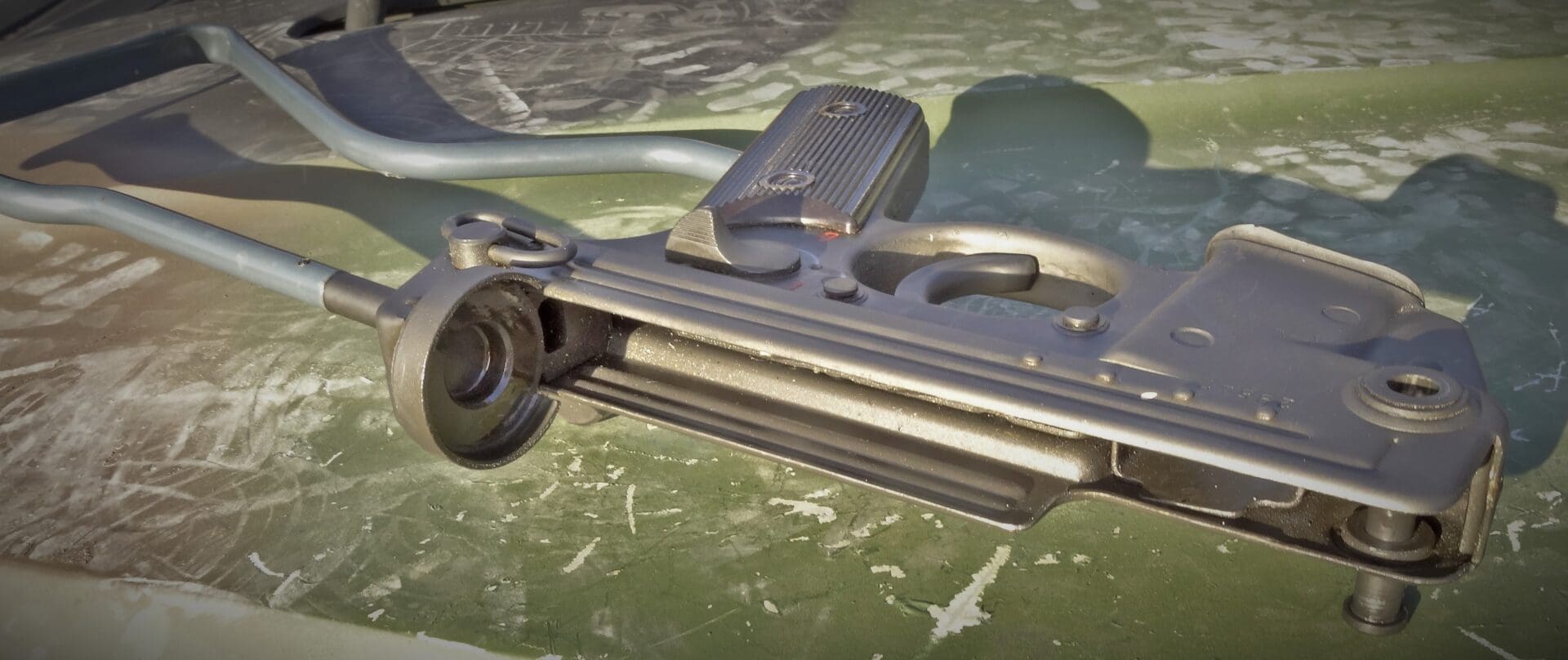

The next photo shows the lower receiver, highlighting the weapon’s use of a simple stamped metal design. Students of the gun will recall that the Germans pioneered the use of stamped metal in SMGs during WWII.

Walther MPK submachine gun

Courtesy Joe Grine

You can shoot 25 rounds through the Walther MP at Battlefield Vegas for a mere $40. Fifty rounds are a relative bargain at $75.

That’s a lot of coin, but for those of us who remember that sad day in Munich, the money buys you a little insight into an interesting question: what if?

Walther MPK submachine gun

Courtesy Joe Grine

Walther MPL
Caliber: 9×19 mm Luger
Weight unloaded: 3.0 kg
Length (unfolded / folded): 746 / 462 mm
Barrel length: 260 mm Rate of Fire: 550 rounds/min
Effective range: 200 m
Magazine capacity: 32 rounds

Walther MPK
Caliber: 9×19 mm Luger
Weight unloaded: 2.83 kg
Length (unfolded / folded): 659 / 381 mm
Barrel length: 173 mm Rate of Fire: 550 rounds/min
Effective range: 100 m
Magazine capacity: 32 rounds
